Alliant Fuel Injection Control Module Connector 03-07 6.0L Powerstroke
HomeStore

Alliant Fuel Injection Control Module Connector 03-07 6.0L Powerstroke

Alliant Fuel Injection Control Module Connector 03-07 6.0L Powerstroke

Select connector serial number
From $30.16

Original: $100.54

-70%
Alliant Fuel Injection Control Module Connector 03-07 6.0L Powerstroke—

$100.54

$30.16

The Story

The FICM's featured on the 6.0L Powerstrokes have shown to be the culprits to numerous issues due to improper output voltage. In most cases, the FICM must be replaced, but it is a very good idea to also inspect the connector itself to ensure its not damaged or corroded. In those instances when it is, replacing it is simple with this connector from Alliant.

There are several connectors available depending on your original connector. Please inspect the serial number on your existing connector to confirm which one you need, cross referencing using the table below.

Part Number Serial Number on Original Connector
AP0018 1456315-6 OR X-3
AP0019 1456315-2 OR X-2
AP0020 1456316-1 OR X-1

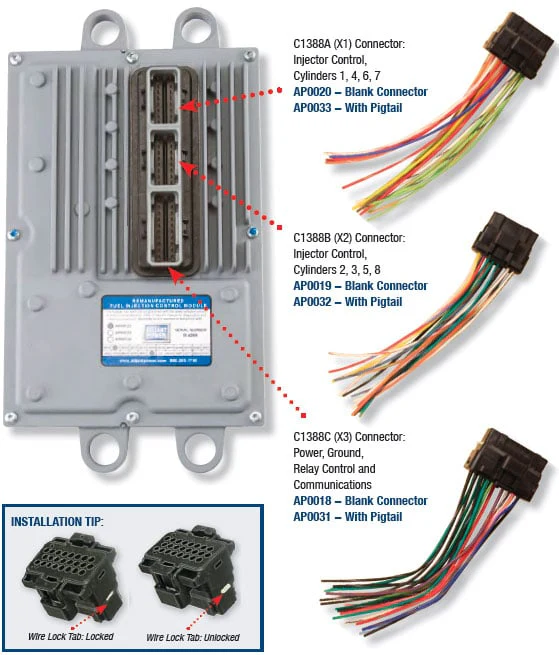

Alliant Fuel Injection Control Module Connector 03-07 6.0L Powerstroke - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

The FICM's featured on the 6.0L Powerstrokes have shown to be the culprits to numerous issues due to improper output voltage. In most cases, the FICM must be replaced, but it is a very good idea to also inspect the connector itself to ensure its not damaged or corroded. In those instances when it is, replacing it is simple with this connector from Alliant.

There are several connectors available depending on your original connector. Please inspect the serial number on your existing connector to confirm which one you need, cross referencing using the table below.

Part Number Serial Number on Original Connector
AP0018 1456315-6 OR X-3
AP0019 1456315-2 OR X-2
AP0020 1456316-1 OR X-1
