ATS 3029302164 TripleLok Torque Converter 94-07 Dodge 5.9L Cummins

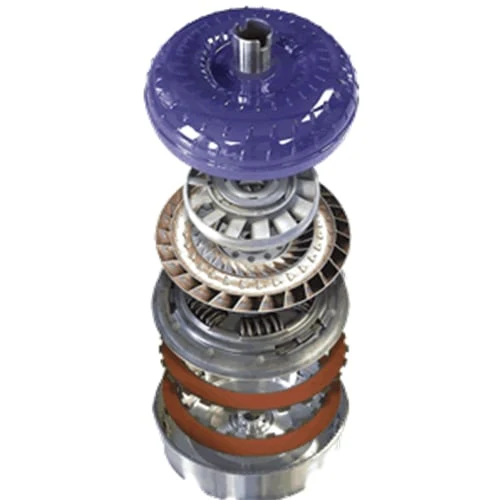

American manufactured from quality components to get your power to the ground. The TripleLok torque converter is where it all started in terms of extremely high performance torque converters for diesels. The TripleLok is also the only torque converter on the market that has been awarded two patents from the US patents office. The 30 square drive tabs are precision CNC cut into the billet cover is only one of the many patented aspects of the TripleLok. ATS also engineered a unique two piece design that not only allows them to cut precision radial flank drive lugs into the cover, but also utilizes a plasma weld ensuring an unmatched quality standard. The patented radial flank drive tabs virtually eliminate the wear that is common with all other round tab multi-disc torque converters. This is the number one reason ATS can offer a 5 year warranty on all of their torque converters.

FEATURES & BENEFITS:

• Billet cover with patented square flank drive
• Square tab construction (not round)
• Triple disc CNC laser cut clutch plates
• Billet piston with patented flank drive tab design
• Proprietary ATS exclusive clutch formulation with unique bonding technology
• Redesigned spring dampener supports increased torque loads
• Fully welded turbine and impeller vanes
• CNC stator with high flow windows increase oil flow providing increase efficiency
• Full roller bearing construction between high load areas
• 4340 CNC cut pump drive hub lock into impeller housing and plasma welded for unsurpassed strength
