$1,180.95

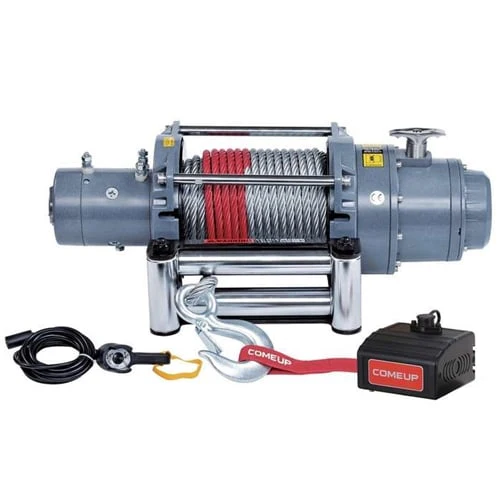

ComeUp 857133 DV-12 12,000 Lbs. Winch—
$1,180.95
The Story
Upgrading your truck with a fast and powerful winch will be one of the best upgrades you've ever made. While most think of a winch as strictly for recovery when offroad, it has so many purposes from moving a fallen tree to helping a neighbor stuck in a snow drift. This DV-12 from ComeUp is rated at 12,000 pounds and features a heavy duty 3-stage planetary gear set for maximum mechanical efficiency.
DESCRIPTION:
DESCRIPTION:
- Fast, powerful and high efficiency performance.
- Heavy duty series wound motor delivers superior torque output and faster line speed.
- Submersible sealed contactor with silver-alloy contact pads, thick copper buss bars and submersible construction ensures weather resistance.
- Patented Cone Brake Structure - "Brake outside the drum" - allows rapid heat dispersion.
- Tough Aluminum alloy housings.
- Industrial grade waterproof remote control comes with a thermometric LED indicator on the hand-held switch that automatically alerts when the motor is over-heated.
- Rugged and quiet 3-stage steel planetary gears for maximum mechanical efficiency.
- An ergonomic T-handle positively engages the free spool clutch through multiple evenly spaced locking holes for rapid rope payout. The entire clutch can be rotated to reposition the T-handle in multiple locations.
- Rated Line Pull: 12,000 lbs (5,443 kg) single line
- Motor: 5.6 hp / 4,180 w 12V Series Wound
- Gear Ratio: 3-Stage Planetary 261:1
- Clutch (freespooling): Rotating Ring Gear
- Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)
- Winch Construction: Aluminum Die Cast Housing with Steel Drum

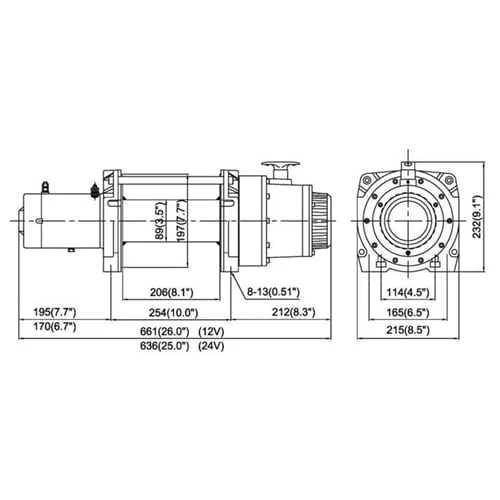

- Drum Size: 3.5" x 8.1" (89 x 206 mm)
- Control: Waterproof remote with thermometric indicator LED w/17' (5 m) cord
- Rope Type: Galvanized aircraft A7 x 19
- Rope Size: 3/8" x 125' (9.5 mm x 38 m)
- Mounting Bolt Pattern: 10.0" x 4.5" (254 x 114 mm)
- Winch Weight: 121 lbs (55 kg)
- Gross Weight: 147.7 lbs (67 kg)
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Upgrading your truck with a fast and powerful winch will be one of the best upgrades you've ever made. While most think of a winch as strictly for recovery when offroad, it has so many purposes from moving a fallen tree to helping a neighbor stuck in a snow drift. This DV-12 from ComeUp is rated at 12,000 pounds and features a heavy duty 3-stage planetary gear set for maximum mechanical efficiency.
DESCRIPTION:
DESCRIPTION:
- Fast, powerful and high efficiency performance.
- Heavy duty series wound motor delivers superior torque output and faster line speed.
- Submersible sealed contactor with silver-alloy contact pads, thick copper buss bars and submersible construction ensures weather resistance.
- Patented Cone Brake Structure - "Brake outside the drum" - allows rapid heat dispersion.
- Tough Aluminum alloy housings.
- Industrial grade waterproof remote control comes with a thermometric LED indicator on the hand-held switch that automatically alerts when the motor is over-heated.
- Rugged and quiet 3-stage steel planetary gears for maximum mechanical efficiency.
- An ergonomic T-handle positively engages the free spool clutch through multiple evenly spaced locking holes for rapid rope payout. The entire clutch can be rotated to reposition the T-handle in multiple locations.
- Rated Line Pull: 12,000 lbs (5,443 kg) single line
- Motor: 5.6 hp / 4,180 w 12V Series Wound
- Gear Ratio: 3-Stage Planetary 261:1
- Clutch (freespooling): Rotating Ring Gear
- Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)
- Winch Construction: Aluminum Die Cast Housing with Steel Drum
- Drum Size: 3.5" x 8.1" (89 x 206 mm)
- Control: Waterproof remote with thermometric indicator LED w/17' (5 m) cord
- Rope Type: Galvanized aircraft A7 x 19
- Rope Size: 3/8" x 125' (9.5 mm x 38 m)
- Mounting Bolt Pattern: 10.0" x 4.5" (254 x 114 mm)
- Winch Weight: 121 lbs (55 kg)
- Gross Weight: 147.7 lbs (67 kg)
