BD Xtrude Auxiliary Transmission Cooler

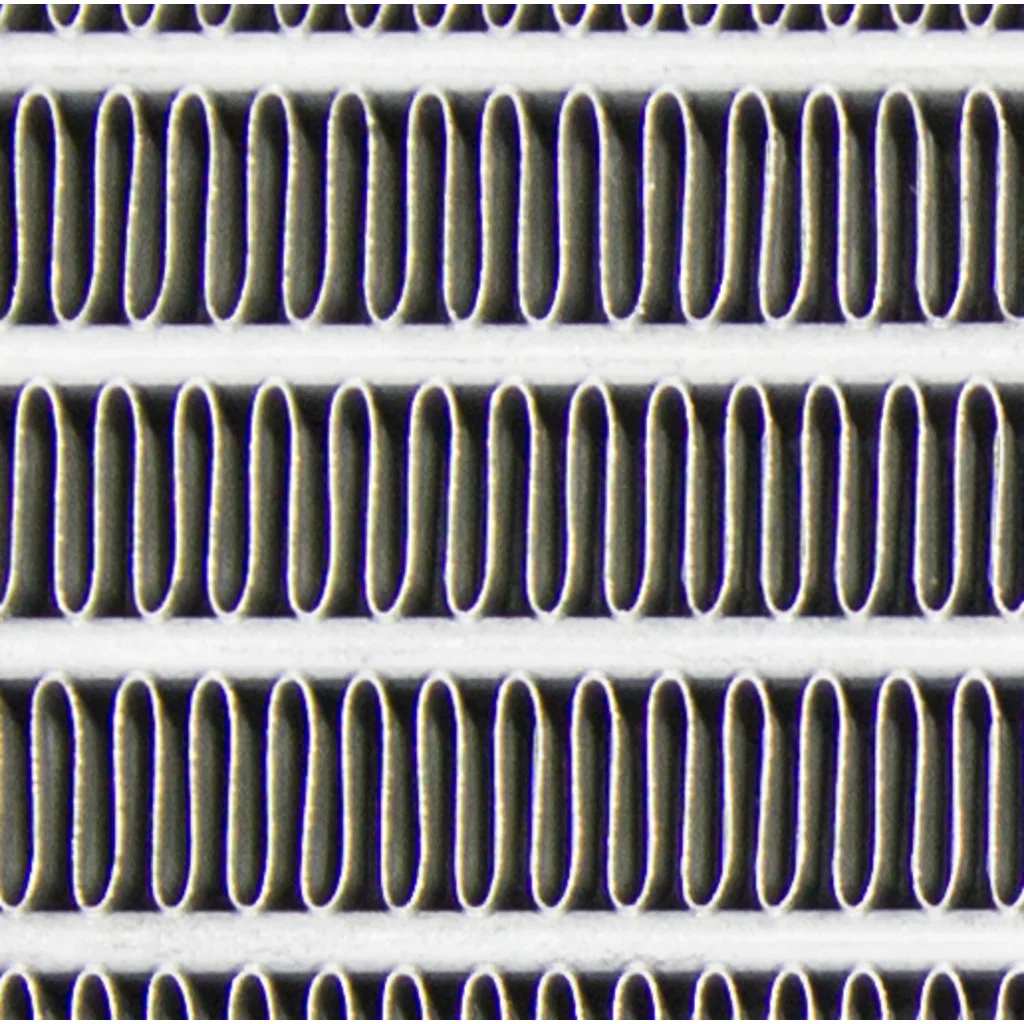

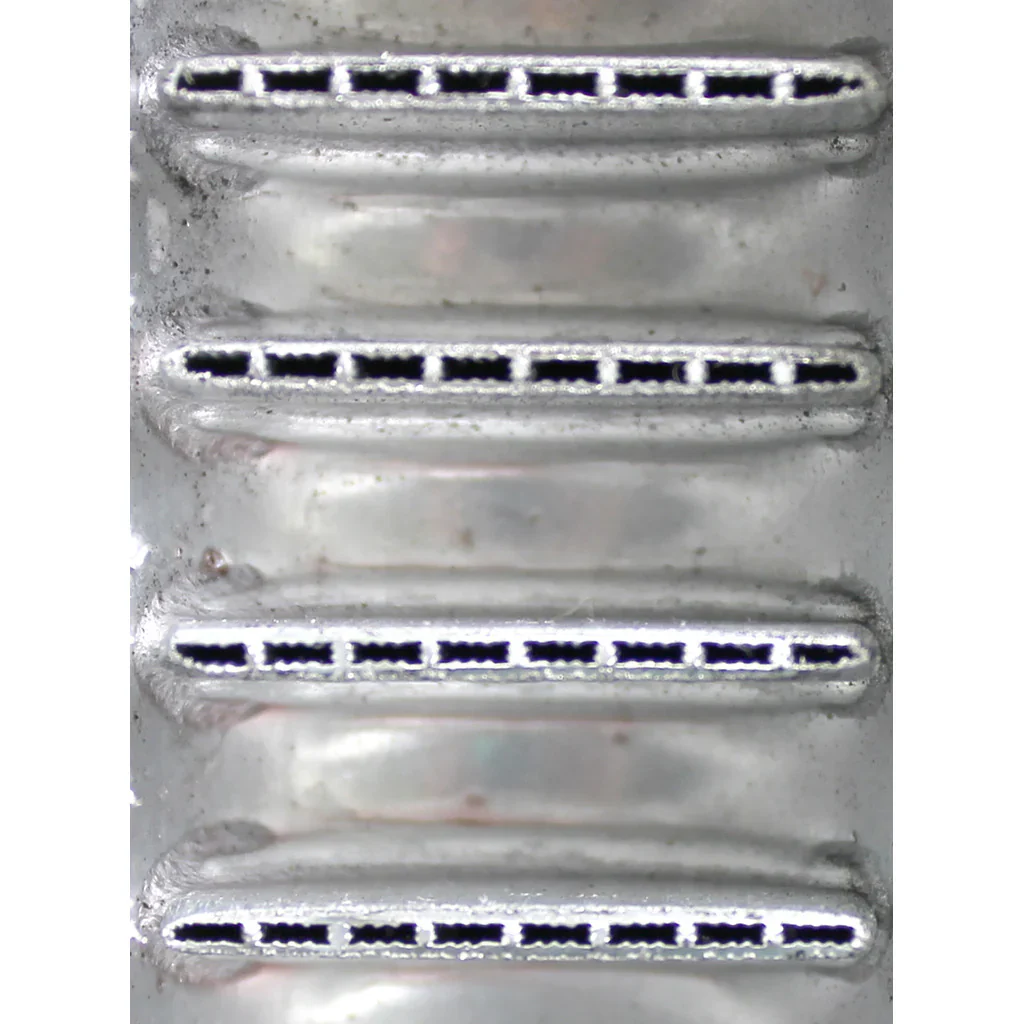

BD's Xtruded Transmission Oil Coolers use the same high efficiency Micro Extruded bar technology that is found in their intercoolers, providing 22% more cooling over other designs. The 200 micro extruded passages provide a large surface area in a compact design that allows the transfer of to external air flow cooling, while a turbulent oil flow design promotes a more complete cooling.

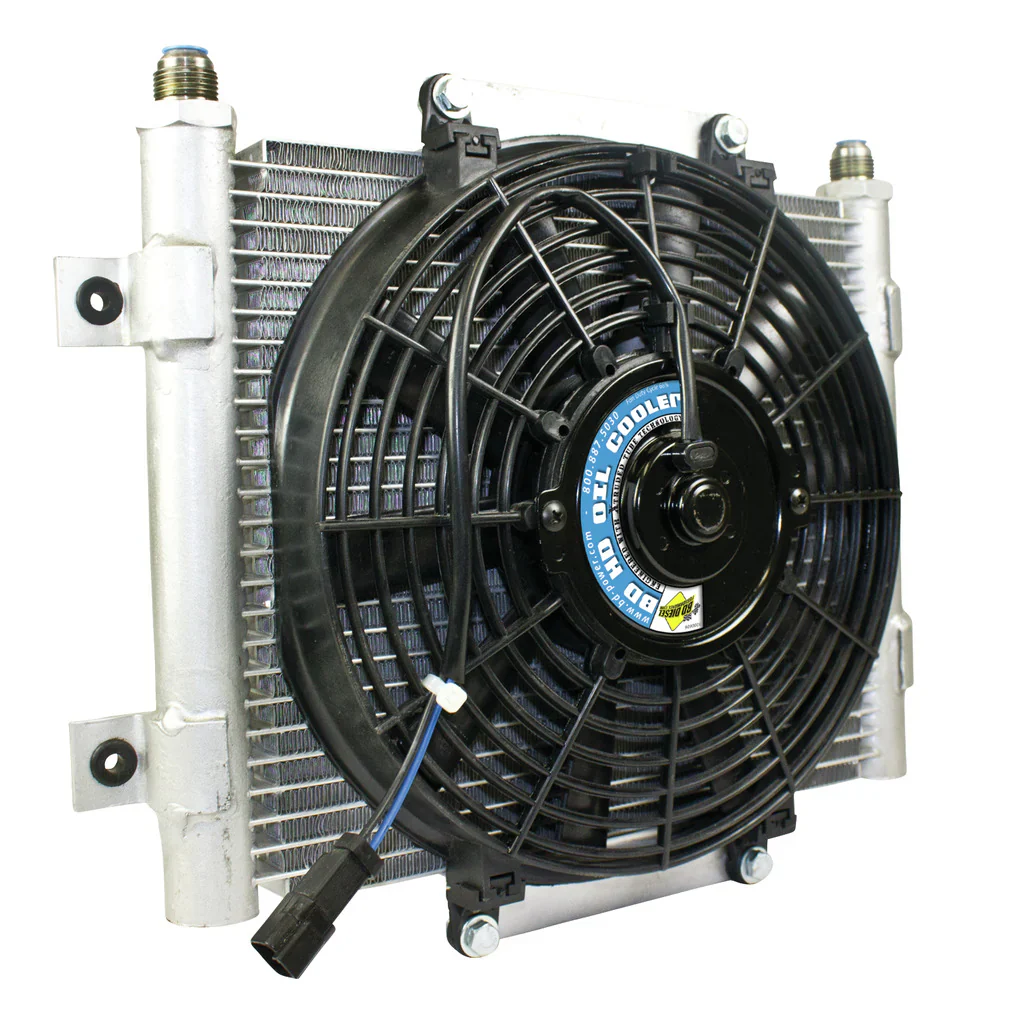

Large 5/8" ports prevent restriction and furnace brazed rails have been tested to 300 PSI of pressure. The thermostatically controlled 80-watt, 10 inch, 800 CFM electric fan offers the ultimate in automatic oil temperature control. This combination gives BD's Xtruded Transmission Oil Cooler a rating of 33,930 BTU/HR and in excess of 30,000 GVW!

VEHICLE APPLICATION CHART
Years	Make	Applications	Fitting Tube Size
1999-2002	Ford	4R100	3/8" Tube
1994-1997	Ford	E40D	5/16" Tube
1999-2000	GM	4L80	3/8" Tube
1991-1999	GM	4L60	5/16" Tube
1993-2026	Dodge	47RH/RE,48RE,68RFE	1/2" Tube
2001-2010	GM	Allison 1000	5/8" Tube
2003-2010	Ford	5R110	1/2" Tube
