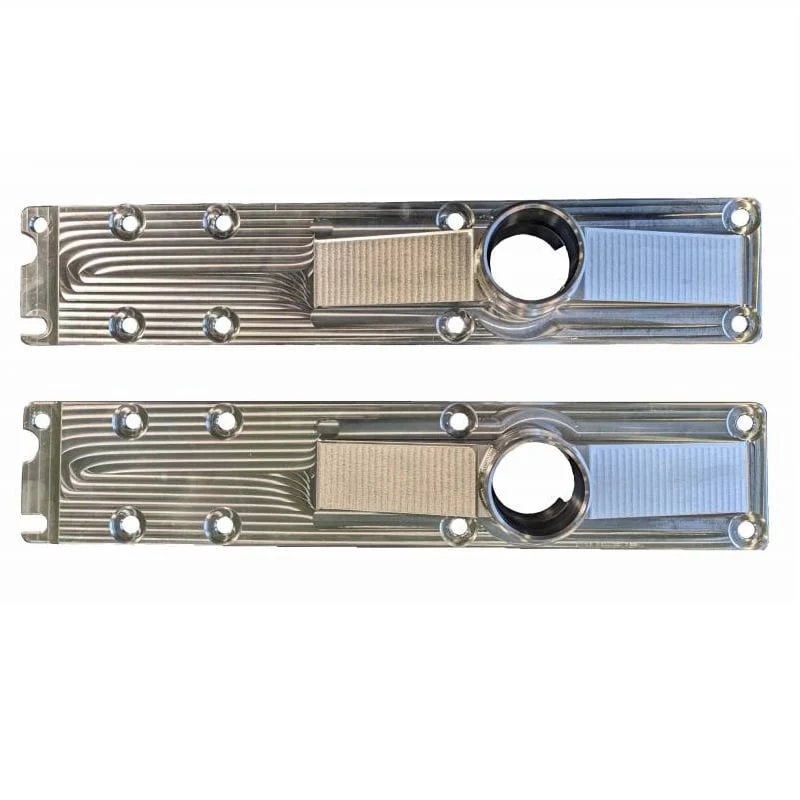

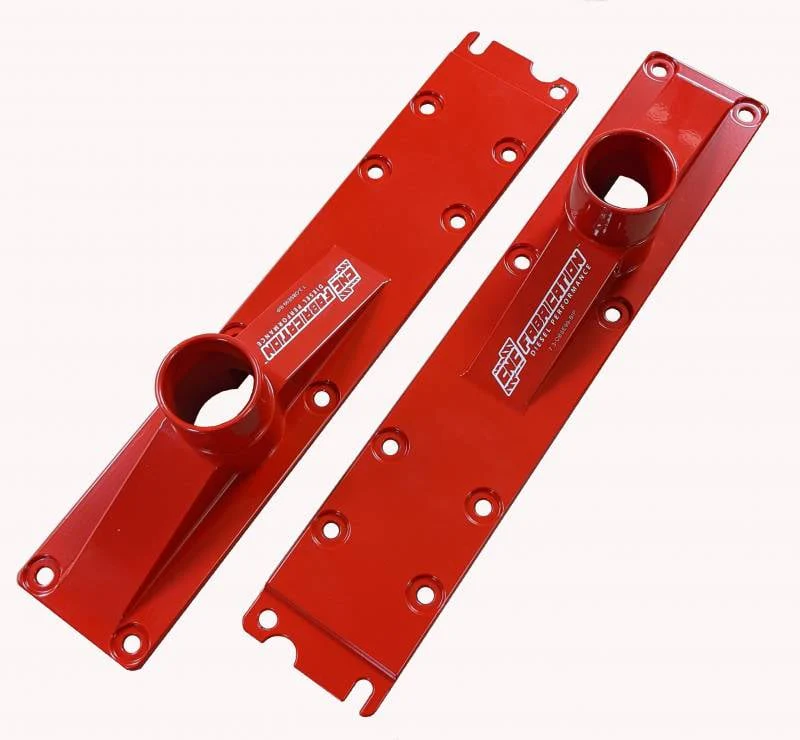

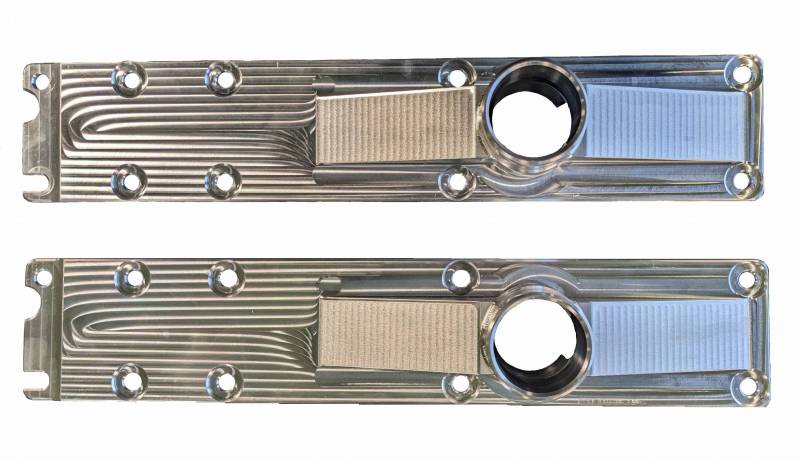

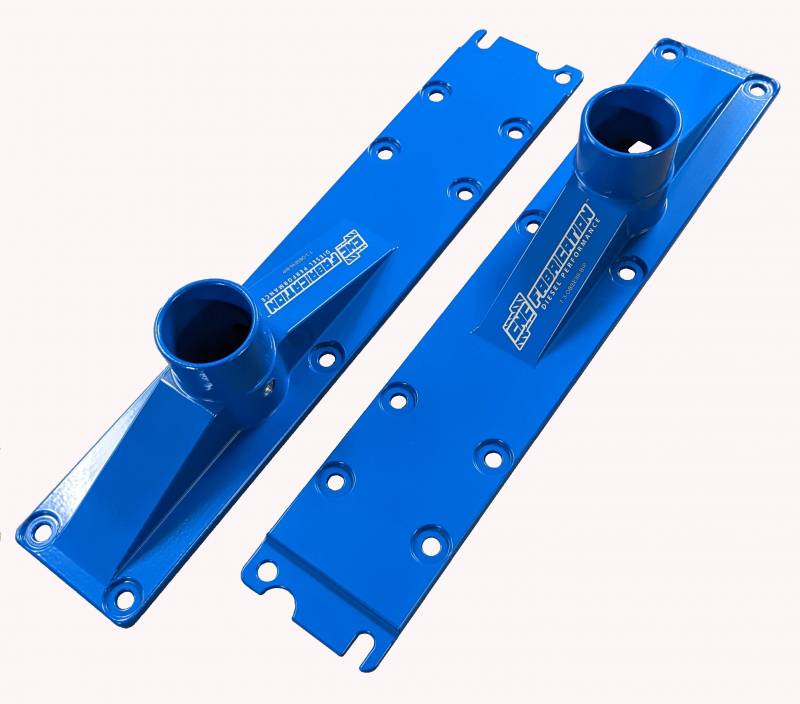

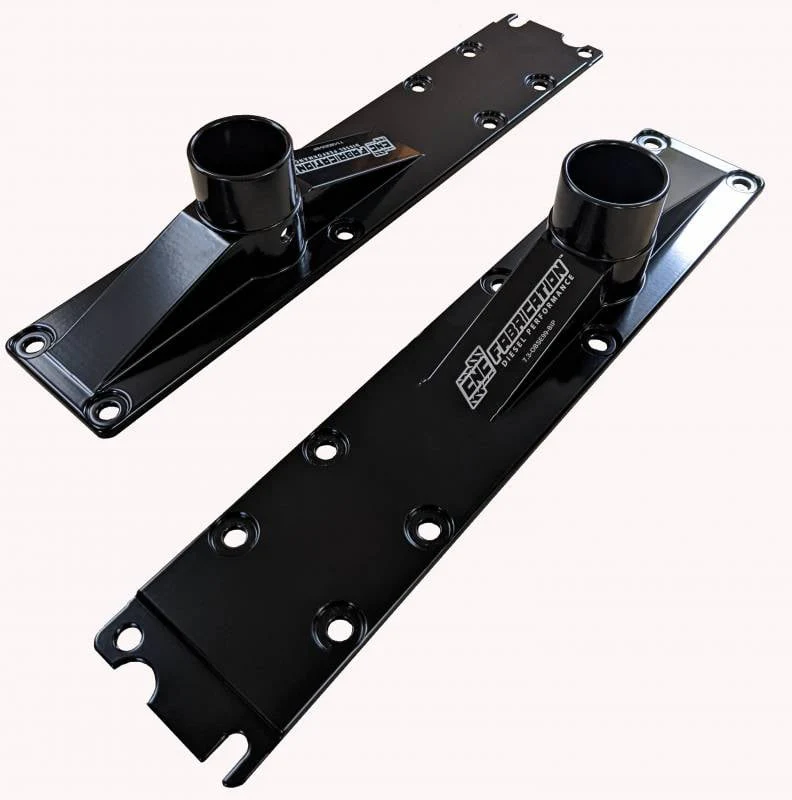

Replace your flimsy stamped steel factory intake plenums in your 7.3L Powerstroke and install a set of Billet Aluminum Intake Plenums from CNC Fabrication. This Intake Plenum set is perfect for trucks with aftermarket turbos as the thicker wall can support much higher boost applications. Also, since these are much thicker than the stock plenums, they will not distort at the hose clamp connection. These plenums come with everything needed for installation and will work with all aftermarket HPOP lines and fuel like kits.

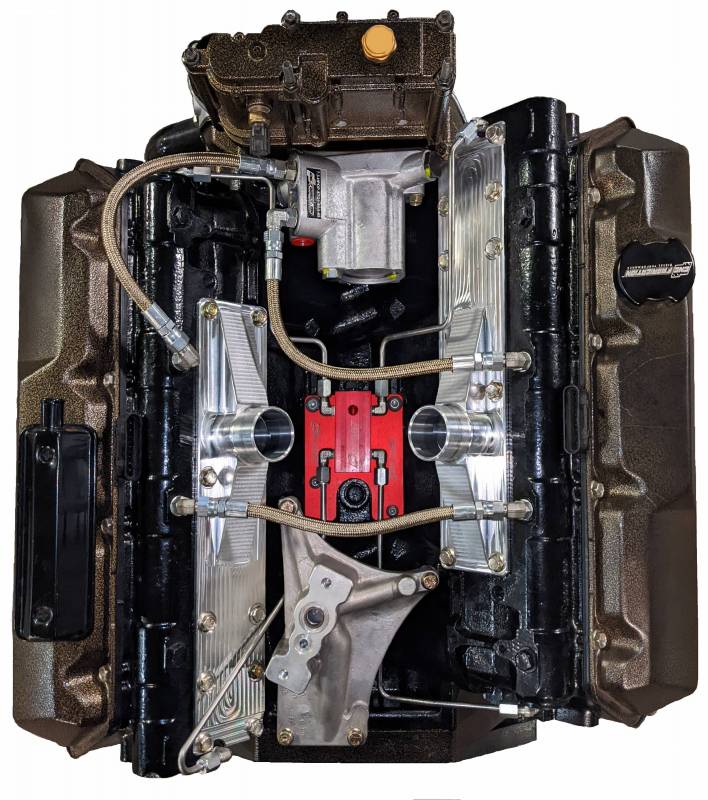

INSTALLATION TIPS: After removal of the old plenums, make sure the surface of the head and new plenum is absolutely clean of any dirt, debris, previous RTV sealant or the new plenums may not seal properly. Apply a small bead of sealant around the outside flange following the groove and go around each bolt hole. Do not apply too much sealant to avoid large globs getting into the intake runners of the cylinder head after the sealant has cured. Follow the instructions on the back of the tube of sealant. After you have placed the sealant on a plenum, install it on the head slowing by watching the bolt holes to line them up as best you can. Install each bolt finger tight. If you are using the original mount for the GPR there are nuts included to better match the bolts in the kit. After each bolt has been installed finger tight, start in the center of the plenum and work towards the ends tightening the bolts with a wrench. A 3/8" ratchet with a 13mm shallow socket and 4" extension works great for all bolts except the one on the passenger side at the front of the engine (you'll need a 13mm combination wrench) that cannot be removed unless you either pull the front cover or have the head off the engine. **You will not be able to install one of the provided bolts in this location unless the front cover is off or you have the head off, the factory bolt can be reused without issue. This one bolt must be installed prior to engine assembly. Bolts are to be torqued to 40ft/lbs.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Replace your flimsy stamped steel factory intake plenums in your 7.3L Powerstroke and install a set of Billet Aluminum Intake Plenums from CNC Fabrication. This Intake Plenum set is perfect for trucks with aftermarket turbos as the thicker wall can support much higher boost applications. Also, since these are much thicker than the stock plenums, they will not distort at the hose clamp connection. These plenums come with everything needed for installation and will work with all aftermarket HPOP lines and fuel like kits.
INSTALLATION TIPS: After removal of the old plenums, make sure the surface of the head and new plenum is absolutely clean of any dirt, debris, previous RTV sealant or the new plenums may not seal properly. Apply a small bead of sealant around the outside flange following the groove and go around each bolt hole. Do not apply too much sealant to avoid large globs getting into the intake runners of the cylinder head after the sealant has cured. Follow the instructions on the back of the tube of sealant. After you have placed the sealant on a plenum, install it on the head slowing by watching the bolt holes to line them up as best you can. Install each bolt finger tight. If you are using the original mount for the GPR there are nuts included to better match the bolts in the kit. After each bolt has been installed finger tight, start in the center of the plenum and work towards the ends tightening the bolts with a wrench. A 3/8" ratchet with a 13mm shallow socket and 4" extension works great for all bolts except the one on the passenger side at the front of the engine (you'll need a 13mm combination wrench) that cannot be removed unless you either pull the front cover or have the head off the engine. **You will not be able to install one of the provided bolts in this location unless the front cover is off or you have the head off, the factory bolt can be reused without issue. This one bolt must be installed prior to engine assembly. Bolts are to be torqued to 40ft/lbs.
