The Story

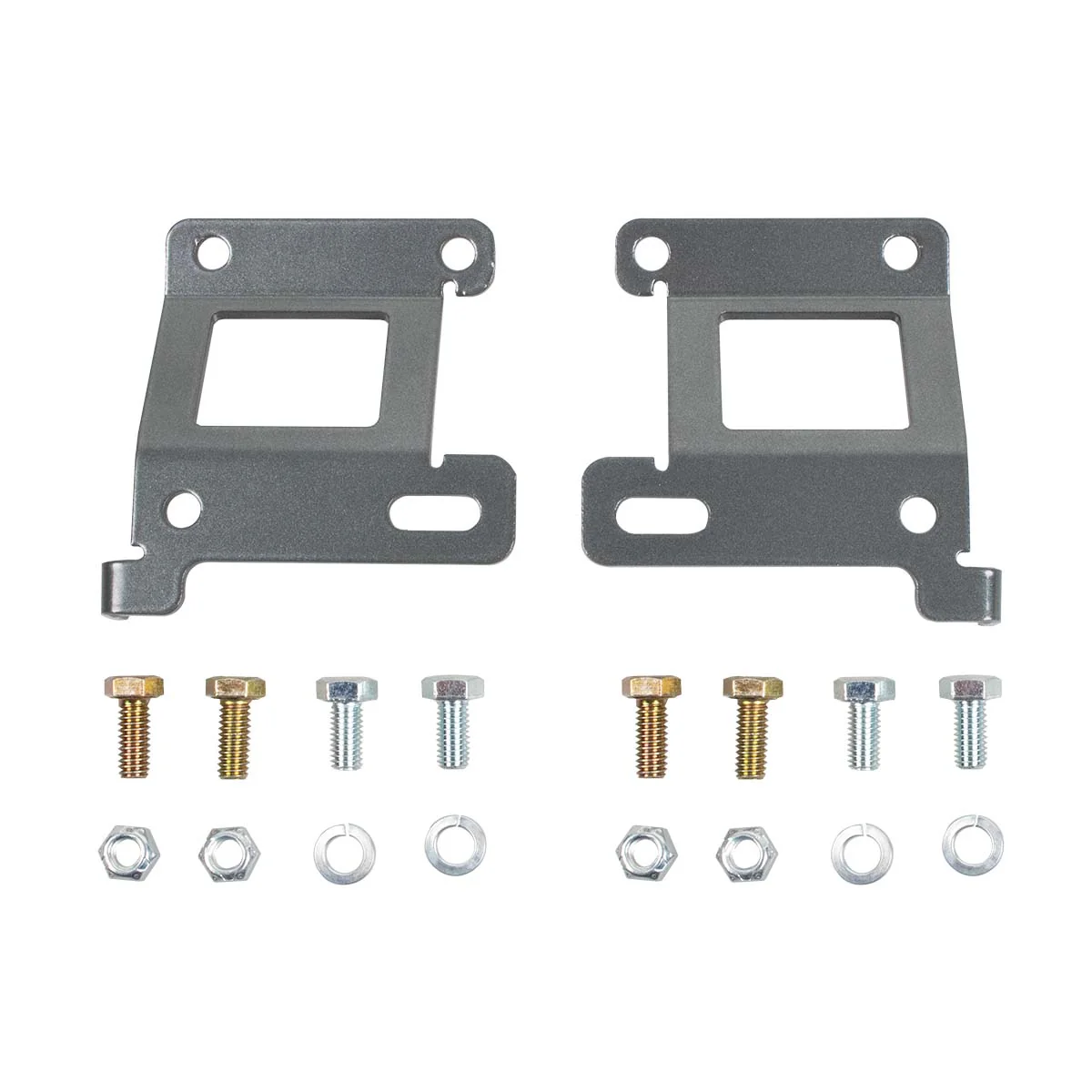

The Synergy Ford Super Duty F-250 / F-350 brake line relocation brackets are highly recommended when lifting or leveling your truck up to 2.5”. This relocation bracket raises the stock brake line bracket 2.5”. This bracket allows you to keep your factory brake line when used in conjunction with the Synergy Leveling Kit. When leveling your Super Duty, the increased height and down travel will over extend the stock brake line, leading to possible damage and brake system failure. By relocating the factory brake line bracket up, the suspension can safely handle a shock with an extended length of 24”. By utilizing these brackets, the factory brake lines and associated ABS clips can be retained. Furthermore, you do not need to open the factory brake system, minimizing mess from brake fluid and possible air bubbles in the brake system.
Fitments:
2011+ Ford Super Duty F-250 4x4
2011+ Ford Super Duty F-350 4x4
Benefits:
Allows for increased suspension droop
Raises factory brake line bracket 2.5”
Provisions for factory vacuum lines
No modifications required to install
No need to bleed brakes or open brake system
Features:
Laser cut and CNC bent
Zinc plated for corrosion protection
Notes:
Compatible with the 2.5 inch Leveling Kit
Cannot be used above 2.5” of lift height
Only compatible with 4x4 front axle
Shock extended length cannot exceed 24”
